A3 MAX 4 High-Speed Dual-Head Commercial Plotter

In Stock

Powered by a robust servo motor, it achieves a maximum cutting speed of 1600 mm/s.
Delivers exceptional accuracy with ±0.01 mm cutting precision and ±0.082 mm repeatability, ensuring consistently sharp, high-quality cuts.
Features dual cutting and creasing heads, enabling simultaneous operations—ideal for packaging, folding cards, and layered designs.
Built for commercial batch processing with capacity to auto-feed and cut 150–180 sheets
Capable of handling 1,300 to 1,500 sheets per day, making it ideal for high-volume production environments and commercial cutting operations.

PDF Docs

Guide & Install

Download PDF

Product Video

Demonstration & Setup

Watch Video

Product Description

Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.

Advanced usability features like multi-language support and multi-color LED

Includes a built-in stacking tray and auto-sheet feeder, allowing smooth loading and organized stacking of 150–180 sheets for continuous cutting.

Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.

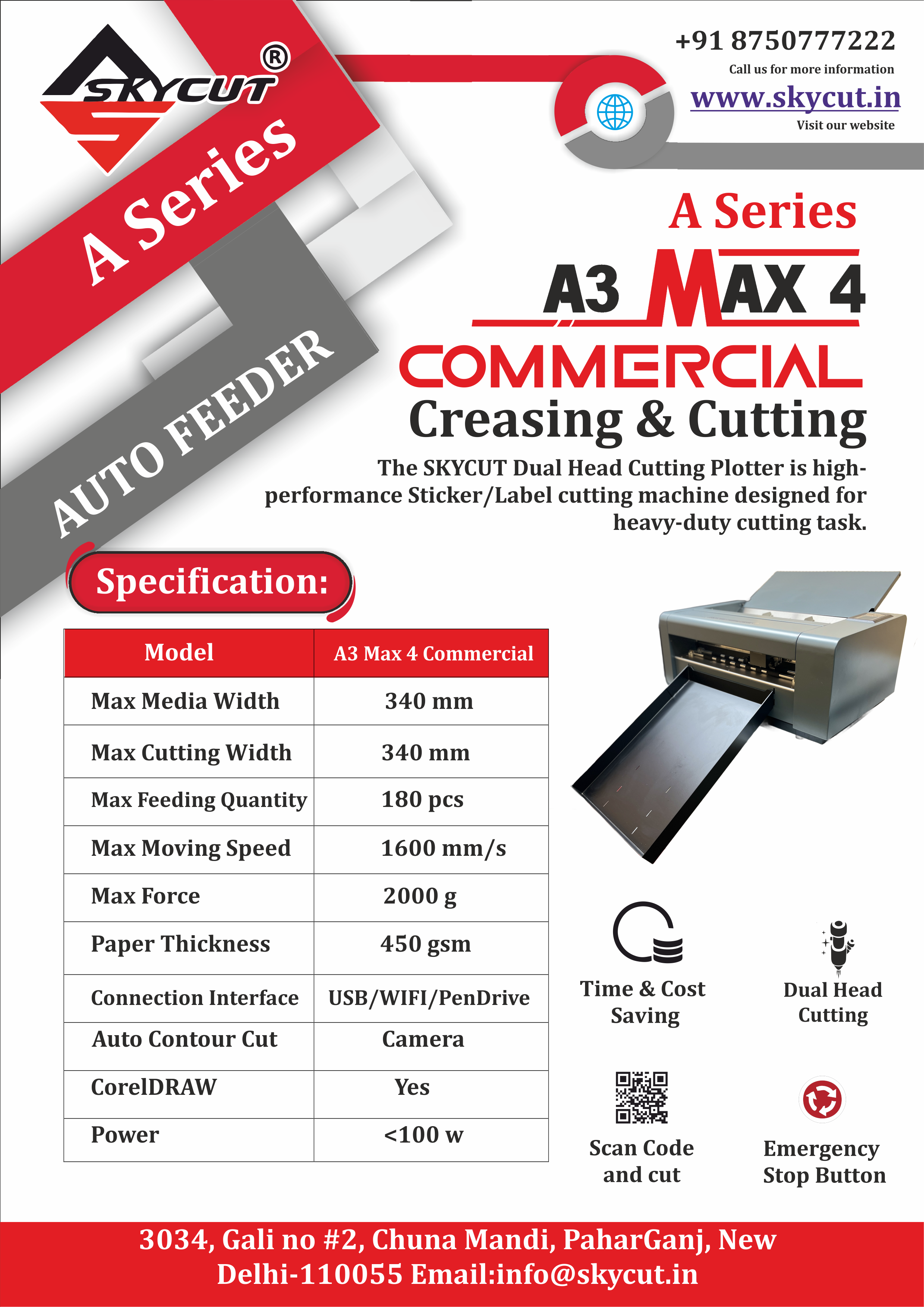

Specifications

Product	SKYCUT A3 Max 4
Max Media Width	340mm
Max Cutting Width	340mm
Max Feeding Quantity	up to 180PCS
Motor	Servo Motor
Max Thickness	400 GSM
CorelDRAW Support	Yes
Cutting Precision	0.01mm
Repeat Precision	0.082mm
Max Moving Speed	1600 mm/s
Max Cutting Speed	1600 mm/s
Max Force	2000g
Connector Interface	U-disk/WIFI/USB Cable
Power	< 100W
Working Environment	+5°C - +35°C
Packing Size	730×330×330mm
Packing Gross Weight	appx 50kg

Product Uses

High-Speed Auto Feeding System

Enables faster and more stable material feeding, perfect for continuous cutting tasks in high-volume production environments.

Double Row Rollers for Material Efficiency

Precisely designed rollers minimize material waste by maintaining uniform margins as small as 5mm on all four sides.

Large Full-Color Touchscreen Interface

Performs simultaneous cutting and creasing, perfect for packaging prototypes, invitation cards, folded boxes, and craft projects.

High-Quality Display with Enhanced Functionality

Offers clear visuals and access to advanced features, improving user experience and operational efficiency during extended use.
