A3 MAX 6 Main Product Image

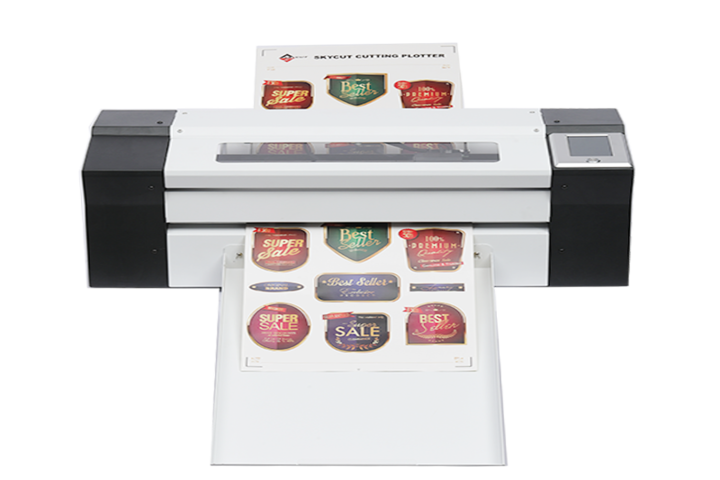

Skycut A3 Max Cutting Plotter

In Stock
  • Industrial grade heavy metal design for heavy duty work.
  • LED light which helps in working in low light conditions.

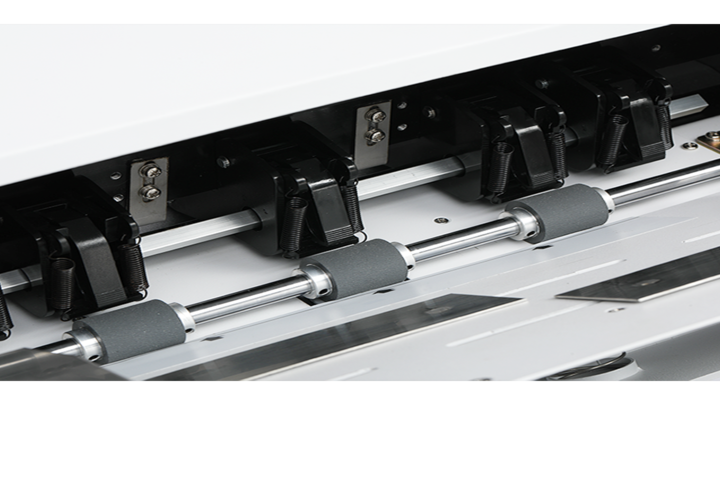

  • Intelligent Auto-Paper feeding up to 150pcs at a time.
  • 2000G cutting-force which can cut thick materials easily.
  • Cutting capacity of 1000-1200 sheets per day.
PDF Docs

Guide & Install

Download PDF
Product Video

Demonstration & Setup

Watch Video

Product Description

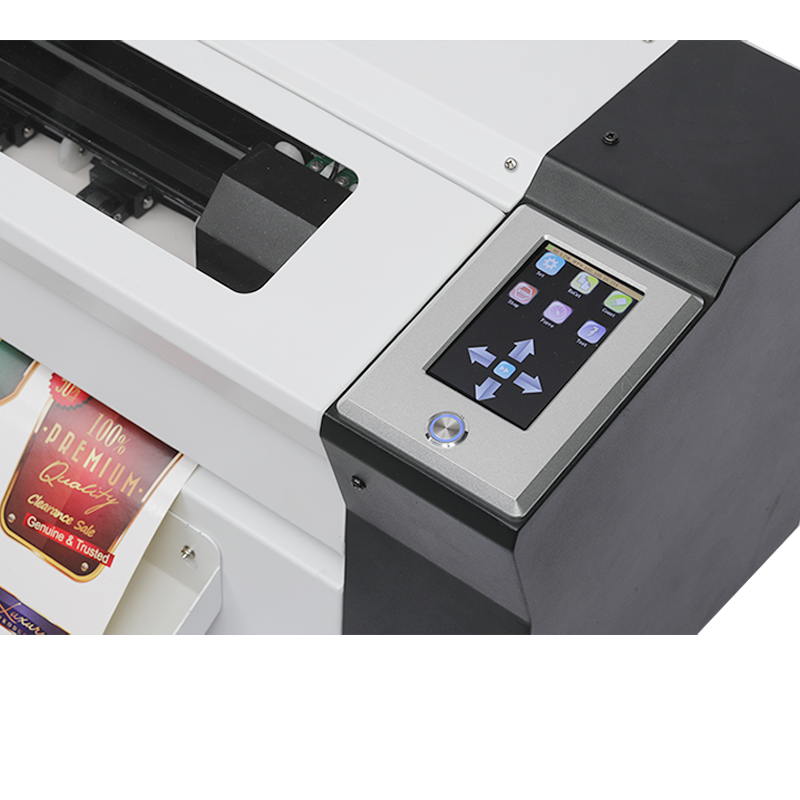

1. Comes with a large touch screen that is easy to use.

2. Provided an assembling tray that helps to stack sheets easily.

3. Powerful 2000G of cutting force which can cut various materials like vinyl, cardstock, and sticker gumming sheets etc.

4. Multiple features like Multi-language and Multi-colour LED (for working in low light conditions).

Specifications

Product SKYCUT A3 Max Metal Body
Max Media Width330mm
Max Cutting Width330mm
Max Feeding QuantityUp to 100 pcs
Cutting Precision0.01mm
Repeat Precision0.082mm
Max Moving Speed700mm/s
Max Cutting Speed600mm/s
Max Force2000g
Connector InterfaceU-disk / WIFI / USB Cable
Power< 100W
Working Environment+5°C – +35°C
Packing Size730×330×330mm
Packing Gross WeightApprox. 42kg

Product Uses

Cutting capacity

Cutting capacity of 1000–1200 sheets per day (in ideal conditions)

WiFi Range

Wide range Wi-Fi with a range of up to 50m to 80m.

300 GSM Cutting

Can cut easily up to 300 GSM.

Multi-interface

Works with PC, over Wi-Fi and also using USB Drive.
