A3 MAX 6 Main Product Image

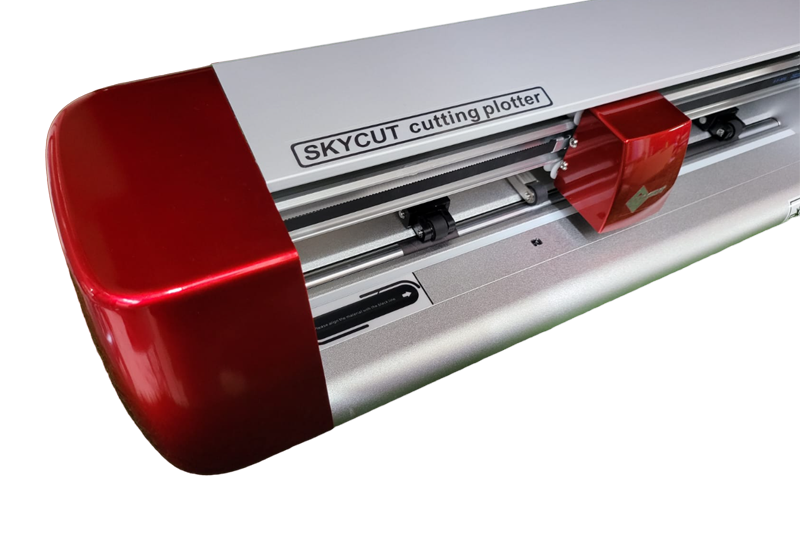

CX16/24 Cutting Plotter

In Stock
  • Metal body.
  • Camera for auto contour cutting.
  • Fully adjustable pinch feed assembly.
  • Multi-colored LED lighting.
  • Laser engraving (optional).
PDF Docs

Guide & Install

Download PDF
Product Video

Demonstration & Setup

Watch Video

Product Description

1. A highly advanced sensor that catches the command in no time without any complex process while working or providing commands.

2. For cutting small, light, and medium-small materials, it comes with 800G cutting force for smooth and glitch-free cutting.

3. Follow-back command function saves your time by preventing repeated commands for various materials.

4. Designed with an industrial-grade metal body that ensures long durability while giving a classic, shiny look and strong build.

Specifications

Product SKYCUT CX-24
Max Media Width 720mm
Max Cutting Width 610mm
Max Contour Cutting Width 570mm
Cutting Precision 0.01mm
Repeat Precision 0.082mm
Max Moving Speed 700 mm/s
Max Cutting Speed 600 mm/s
Max Force 800g
Connector Interface U-disk / WIFI / USB Cable
Power < 100W
Working Environment +5°C - +35°C
Packing Size 730×330×330mm
Packing Gross Weight appx 14kg

Product Uses

Cutting Tools
Cutting Tools

All products come with capsule-type cutting tubes that offer stability, accuracy, and speed for smooth alignment and cutting.

Cutting Blades
Cutting Blades

We offer various blade angles—30°, 45°, and 60°—suitable for all cutter sizes, from compact models to industrial machines.

Drawing Pen Kit
Drawing Pen Kit with Mat

Skycut provides a drawing pen kit and cutting mat for enhanced grip and precision. The D series includes two pens and a cutting mat.

Multi-function Cables
Multi-function Cables

All Skycut products include USB, power cables, and adapters tailored to each cutter's specifications and power needs.
