A3 MAX 6 Main Product Image

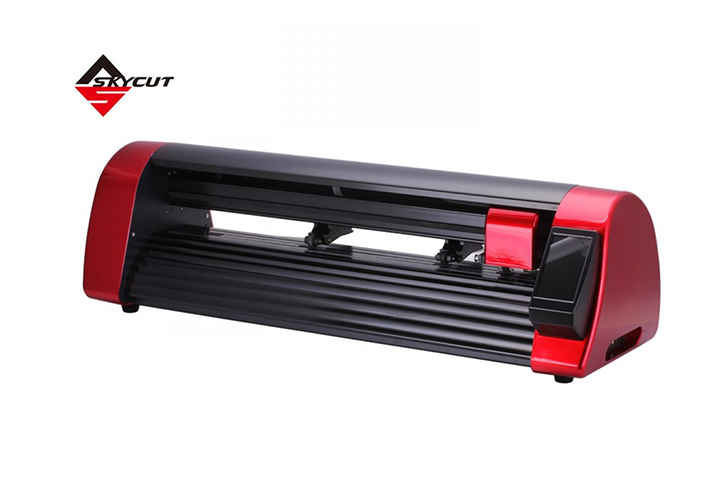

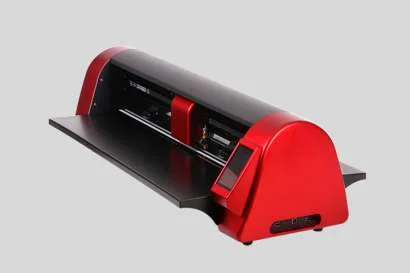

Skycut V60 Vinyl Cutting Plotter

In Stock
  • Simple plug and play machine with easy installation procedure.
  • Large stand included, providing the convenience of working in a comfortable standing position during operation.
  • 2000G cutting-force which can cut Radium and Retro materials easily.
  • Larger Cutting area for all sizes of media and materials.
  • Large touch screen with intuitive controls and built-in sound feedback for easy operation
PDF Docs

Guide & Install

Download PDF
Product Video

Demonstration & Setup

Watch Video

Product Description

For high accuracy, the V60 features an auto contour cutting camera that also offers a preview function, allowing you to view and make adjustments before cutting.

For long-lasting durability, this wide-format cutting plotter features a robust, industrial-grade metal body.

Provides LED light which helps in working in low light conditions.

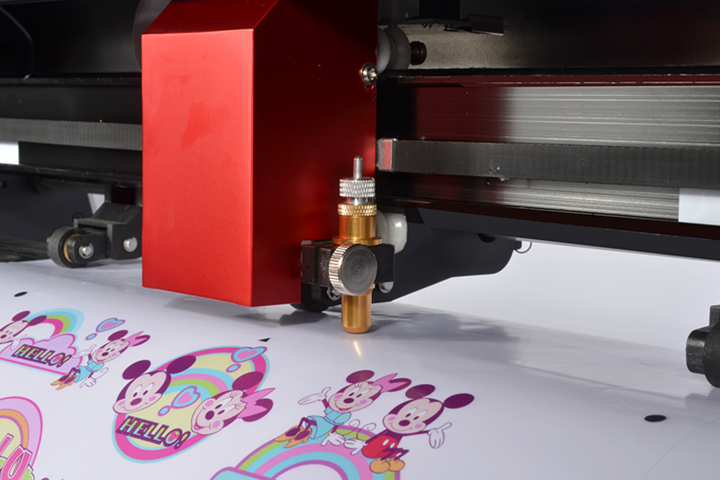

The single independent head feature enables precise cutting with enhanced control and efficiency for a wide range of materials.

Specifications

Product Skycut V24 Skycut V48 Skycut V60
Max Media Width720mm1350mm1650mm
Max Cutting Width610mm1240mm1540mm
Max Contour Cutting Width570mm1200mm1500mm
Packing Size1000×360×388mm1620×360×388mm1920×360×388mm
Packing Gross Weight18kg39kg50kg
Max Force2000g2000g2000g
Number of Heads111
Floor StandOptionYesYes
Auto Contour CutCameraCameraCamera
CorelDRAW DirectlyYesYesYes
Power Supply (V/Hz)220/50220/50220/50
Laser Engrave OptionNoNoNo
Scratch EngraveYesYesYes
MotorStepperStepperStepper
Processor Memory128MB128MB128MB
Cutting Precision±0.01mm±0.01mm±0.01mm
Repeat Precision0.082mm0.082mm0.082mm
Max Moving Speed700mm/s700mm/s700mm/s
Max Cutting Speed600mm/s600mm/s600mm/s
Connector InterfaceUSB flash / WIFI (option) / USB cableSameSame
Power<100W<100W<100W
Working Environment+5°C – +35°C+5°C – +35°C+5°C – +35°C

Product Uses

Cutting Blades
Cutting Blades

We provide blades in 30°, 45°, and 60° angles suited for various types of cutters, from compact to heavy-duty.

Creasing Tools
Creasing Tools

Specifically for the V series with dual-head functionality, creasing tools ensure smooth and separate operation.

Multi-function Cables
Multi-function Cables

All Skycut products include USB cables, power cords, and adapters according to cutter model and power needs.

Drawing Pen Kit with Mat
Drawing Pen Kit with Mat

Included with D series: 2 drawing pens and a mat for enhanced gripping, alignment, and precise cutting.
