Skycut VH-48 Servo Motor

In Stock

Cuts with up to 2000 g force, perfect for radium and retro films.
Offers cutting speeds up to 1200 mm/s for fast production.
Delivers ±0.01 mm precision for clean, accurate results.
Supports a max cutting width of 1240 mm for large designs.
Features a servo motor for smooth and quiet operation.

PDF Docs

Guide & Install

Download PDF

Product Video

Demonstration & Setup

Watch Video

Product Description

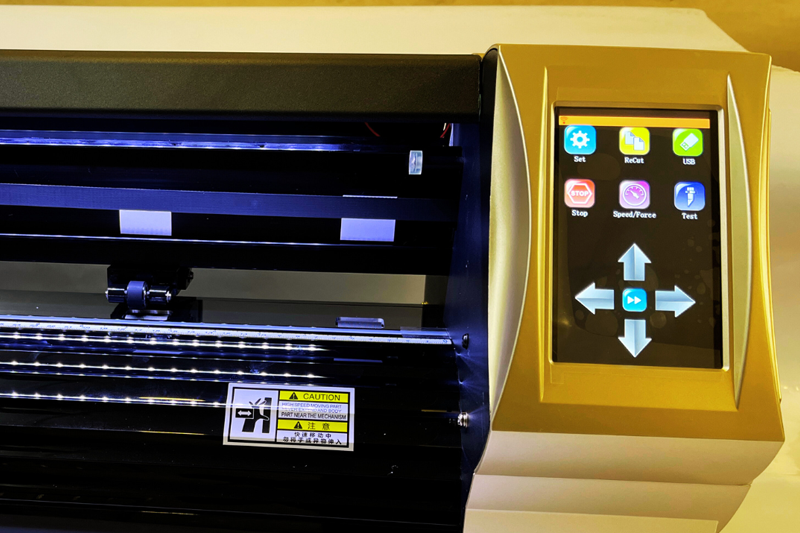

1. Comes with a large touch screen that is easy to use and command without any trouble from analog button systems.

2. Multi-supportive interface including USB, Wi-Fi (optional), hard drive, and cable connectivity — offering flexibility to connect the cutting plotter with a computer or PC.

3. Provides a powerful 2000G cutting force, allowing it to handle various materials like vinyl, cardstock, and EVC foam.

4. Multi-functional support includes multi-language UI and multi-color LED lighting for enhanced night-time visibility.

Specifications

Product	SKYCUT VH-48
Max Media Width	1350mm
Max Cutting Width	1240mm
Motor	Servo
Cutting Precision	0.01mm
Repeat Precision	0.082mm
Max Moving Speed	1200 mm/s
Max Cutting Speed	1100 mm/s
Max Force	2000g
Connector Interface	U-disk / WIFI (Optional) / USB Cable
Power	< 100W
Working Environment	+5°C - +35°C
Packing Size	1920×360×388mm
Packing Gross Weight	appx 39kg

Product Uses

Cutting Blades

We offer a variety of blade angles—30°, 45°, and 60°—to suit different types of cutting needs, from fine details to thick or large materials.

Creasing Tools

All Skycut products come equipped with essential cables, including USB cables, power cables, and adapters, tailored to each model’s power requirements and specifications.

Multi-function Cables

Creasing tools can be used with the VH series, allowing for added functionality when needed, even though the machine features a single head.

Drawing Pen Kit with Mat

Skycut provides a drawing pen kit along with a cutting mat to ensure better grip and precise cutting. The VH series includes one drawing pen and a cutting mat for enhanced functionality.
